A soil support system – designed for maximum soil and rooting volume.

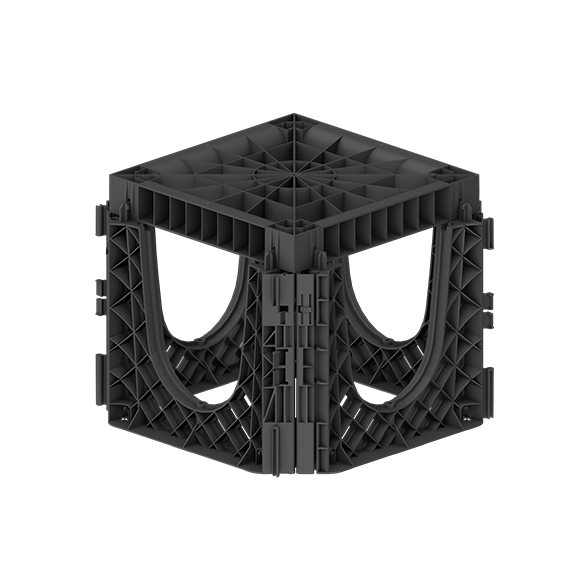

The GreenBlue Urban RootSpace® AirForm system is a pavement support system designed for maximum soil and rooting volume while being ‘utility friendly’ and boasting industry-leading strength characteristics.
In 2001, GreenBlue Urban brought the world’s first purpose-made commercial soil cell for urban tree planting to the market. Since that time, thousands of trees have benefited and continue to benefit from access to uncompacted soil volumes beneath heavily engineered pavements and roadways.
RootSpace® AirForm is the next generation soil protection product, developed by GreenBlue Urban to reduce cost, cut down installation time, and incorporate industry-leading soil aeration methodology – a vital and often overlooked component in tree pit design.
RootSpace AirForm G2
GreenBlue is very proud to announce a relaunch of RootSpace with some excellent improvements
For full specification including loading – scroll down to the specification area.

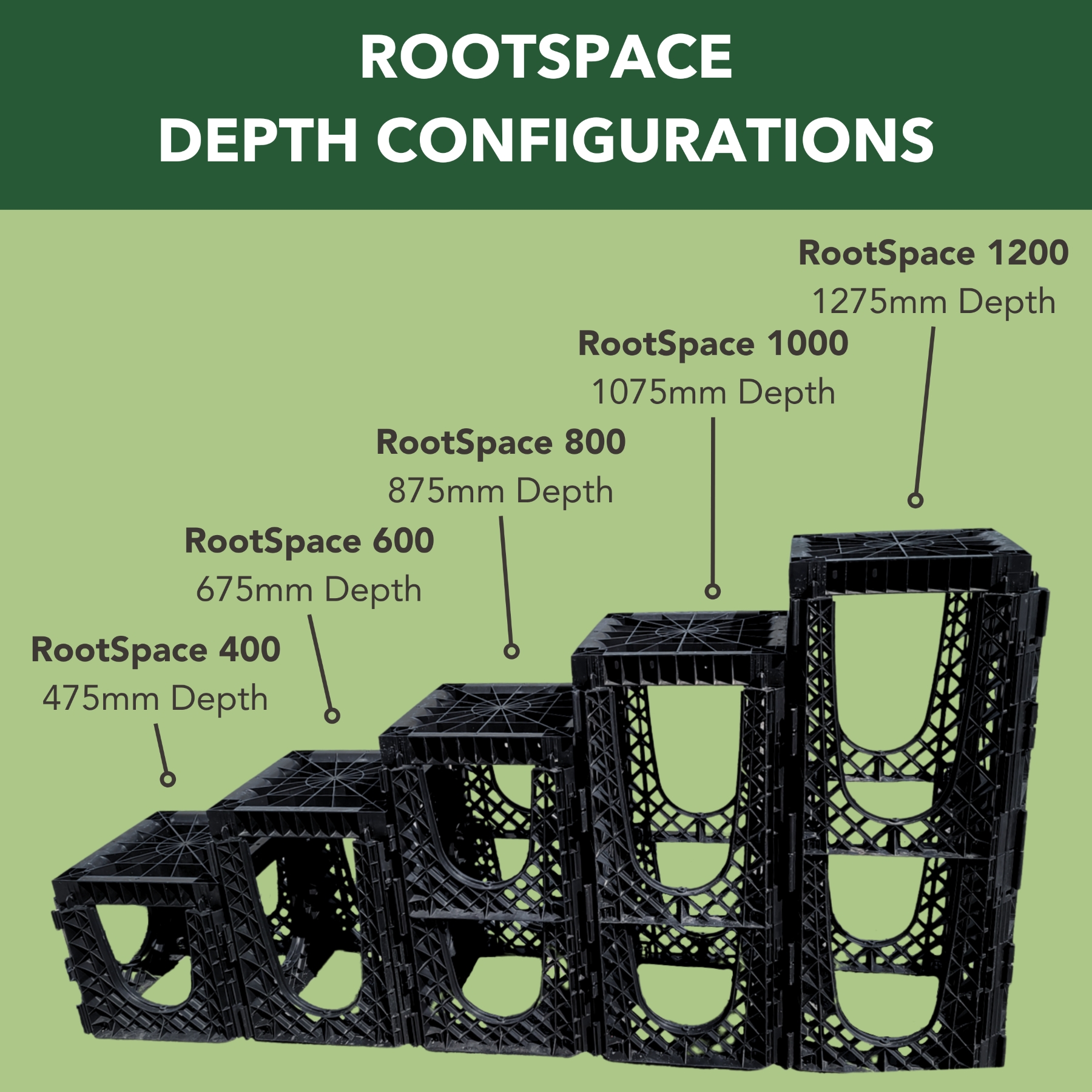

|GBURAC600A||RootSpace 600 Upright – always supplied including GBURSAF6A||24″ (600mm)||20″ (500mm)||3 ½” (90mm)||38psi (260kpa)|
|GBURAC500A||RootSpace Airflow Lid||3″ (75mm)||20″ (500mm)||20″ (500mm)|
|GBURSAF6A||RootSpace AirForm – Mandatory component with GBURAC5600A|
|GBURSP65A||RootSpace 600 Infill||21″ (527mm)||13″ (334mm)||2″ (40mm)|
|GBURAC400B||RootSpace 400 Upright – always supplied including GBURSAF4B||16″ (400mm)||20″ (500mm)||3″ (90mm)||59psi (410kpa)|
|GBURAC500B||RootSpace Airflow Lid||3″ (75mm)||20″ (500mm)||20″ (500mm)|
|GBURSAF4B||RootSpace AirForm – mandatory component with GBURAC5400B|
|GBURSP45PB||RootSpace 400 Infill||13″ (327mm)||13″ (334mm)||2″ (40mm)|
