RootStop

Smooth root barrier for protecting building foundations and underground service ducts.

REQUEST QUOTE
CASE STUDIES
SPECIFICATIONS

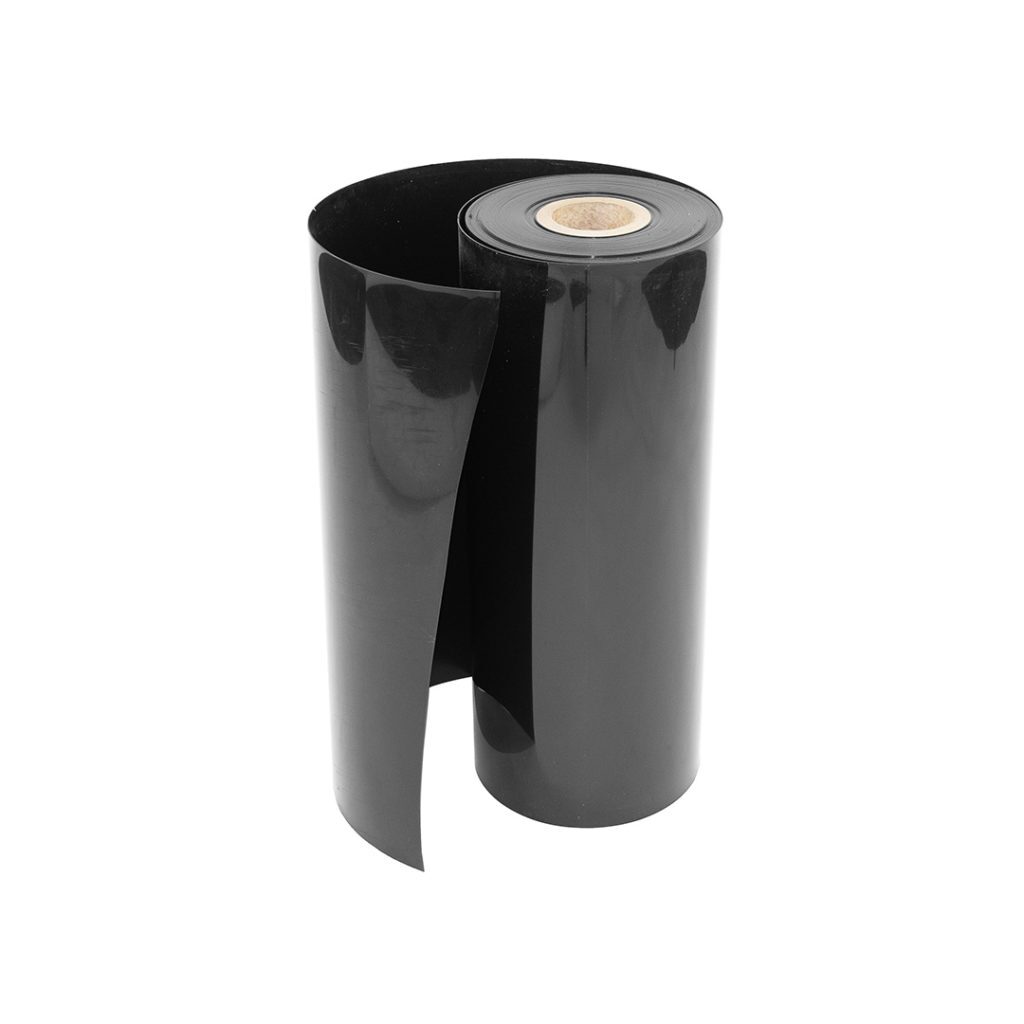

RootStop is a high strength smooth root barrier for deeper applications. It has been used extensively on many projects across North America and around the world, particularly in new service infrastructure projects, business parks and housing developments.

Benefits

  • Effective in the control of Japanese Knotweed and other invasive plants
  • Fulfills all Arboricultural Advisory and Information Service guidelines for root barriers
  • Deeper root growth improves drought tolerance and tree stability
  • Guides roots away from areas vulnerable to de-icing salts
  • Prevents pavement ‘root heave’ effectively eliminating trip hazards
  • Ease of installation in virtually all situations with no specialist equipment required

Features

  • Available in standard 600mm (24″), 1.0m (40″), 1.5m (4’11”) and 2.0m (6’7″) depth rolls, up to 6m (20′) deep rolls to special order.
  • Available in 1.0mm (3/64″) and 2.0mm (5/64″) thicknesses
  • Supplied in roll form and cut to order in 10m increments to minimise waste
  • Recycled HDPE is resistant to puncture, biodegradation, and photodegradation
  • ReRoot jointing tape allows root-proof joints



Code Thickness Depth Roll Length
RER210X0.6A 1mm 600mm 100m
RER210X1.0A 1mm 1000mm 100m
RER210X1.5A 1mm 1500mm 100m
RER220X1.0A 2mm 1000mm 100m
RER220X1.5A 2mm 1500mm 100m
RER220X2.0A 2mm 2000mm 50m

Material: Recycled HDPE Finish: Natural Colour: Black Weight: 1mm = 1kg per square meter, 2mm = 2kg per square meter

Property Test Method Units Range
Density ISO 1872/1 – 1986 Grams/cm 0.952-0.956
Melt Flow Rate ISO 113-190c 2.16kg Grams/10 minutes 0.1-0.2
Melt Flow Rate High Load Scale ISO 113-190c 21.6kg Grams/10 minutes 10-16
Moisture In-house test % <0.1
Izod Impact ISO 180/1A, 23c kJ/m2 >4

Related Products

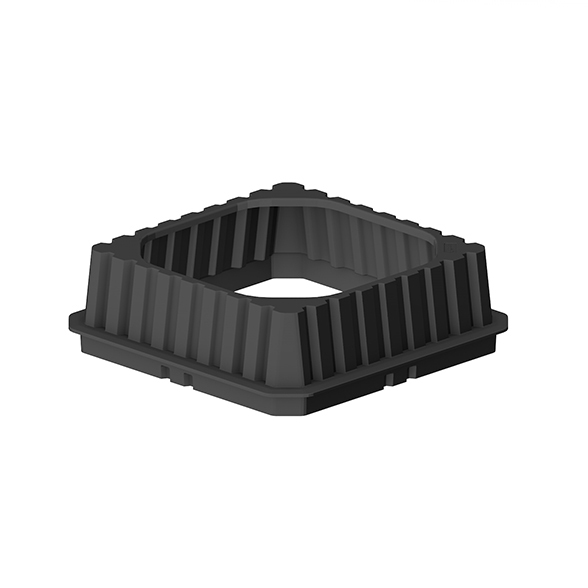

RootDirector
