ArborVent

Short description

Heavy-duty irrigation inlet for hardscape surfaces to facilitate water and oxygen into tree root zones below pavement.

Details

Category:

Description

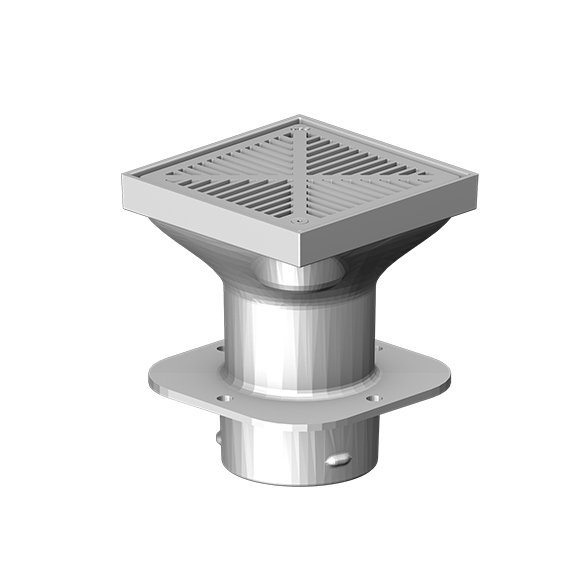

ArborVent 150 is a 6″ x 6″ heavy-duty cast irrigation and aeration inlet for heavily trafficked hardscape areas. It connects to the RootSpace Airdeck, providing long-term soil health and fertility by facilitating high volumes of nutrients such as water and oxygen to reach the tree rooting area within the soil matrix while allowing organic gasses to escape – all critical factors in tree welfare.

For long-term root irrigation and aeration in paved surfaces, the ArborVent 150 provides a permanent access point for installing in paving. The system links the RootSpace Airdeck to allow irrigation and aeration throughout the soil profile and enabling air exchange in the root zone. The heavy-duty cast inlet has a lift and swing lid intended for easy access for cleaning and inspection, and has the capacity to withstand heavy vehicular overrun, including from street sweepers.

  • Heavy-duty cast aluminum/bronze inlet withstands high loads
  • Cast aluminum/bronze vent lid permanently attached to inlet by stainless steel fitting
  • Lid lifts and swings to one side for fast irrigation
  • Can be used in conjunction with ArboResin porous bound gravel
  • Flush finish ensures no trip hazard
Code Inlets Inlet size Pipe length Pipe diameter Loop diameter Weight
RRARBV1D 1 no 110mm (4″) 3m (10′) 60mm (2 1/2″) 895mm (2′ 11″) 1.1kg (2 1/2 lbs)
RRARBV2D 1 no 110mm (4″) 5m (16′ 5″) 60mm (2 1/2″) 1530mm (5′ 2″) 1.5kg (3 1/2 lbs)
RRARBV3D 1 no 110mm (4″) 8m (26′) 60mm (2 1/2″) 2490mm (8′ 2″) 2.0kg (4 1/2 lbs)

For use with StrataCell as aeration

RRARBVDI3D 2 no 110mm (4″) 8m (26′) 60mm (2 1/2″) 2490mm (8′ 2″) 2.6kg (6 lbs)

For use with RootSpace as aeration

RRARBV150B 1 no 150mm (6″) 0.7m (27 1/2″) 110mm (4 1/2″) n/a 3.0kg (6 1/2 lbs)

RRARBV150B usage – 1 inlet per 5 square meters, minimum of 2 per pit.

Part Material Finish Colour
Body LM6 Aluminium Machined Natural
Lid ADC12 Aluminium Brushed Natural
Pipe Recycled HDPE Natural Black
Tee Recycled HDPE Natural Black
Manifold Recycled HDPE Natural Black
