Urban communities across the UK are experiencing more frequent and intense flooding events that challenge the capacity of conventional drainage networks. As weather patterns evolve, and rainfall becomes more unpredictable, traditional infrastructure approaches are reaching their operational limits. This changing landscape presents an opportunity to rethink how we manage stormwater in our towns and cities, moving toward innovative solutions that integrate natural processes with engineered systems to create more resilient urban environments.
The Growing Inadequacy of Traditional Infrastructure
For decades, grey infrastructure has dominated urban stormwater management through an extensive network of pipes, culverts, crates, and detention basins. This approach served us well when weather patterns were more predictable, but increasing urban flooding events may be showing that these systems are becoming inadequate for the challenges we now face. Traditional drainage networks were designed for historical weather patterns, not the extreme events that are becoming our new normal.
The limitations extend beyond simple capacity issues. Conventional grey infrastructure offers no additional benefits beyond water conveyance, and these systems are reaching their operational limits precisely when communities need them most, leaving urban areas increasingly vulnerable to flooding during extreme weather events.
A Fundamental Shift Toward Nature-Based Solutions
The solution lies in embracing sustainable urban drainage systems that integrate nature-based elements like tree pits and raingardens into comprehensive stormwater management strategies. These systems represent far more than decorative urban enhancements, they represent a shift to how we approach water management in built environments, offering multi-functional solutions that address multiple urban challenges simultaneously.
Tree pit systems with integrated SuDS significantly reduce both the velocity and volume of surface water runoff. The immediate impact comes from engineered soil mixes that create enhanced pathways for water infiltration while maintaining the structural integrity necessary to withstand repeated flooding events. As trees mature within these systems, they provide increasingly effective dual protection by intercepting substantial volumes of rainwater through their expanding canopies before it reaches the ground, while their growing root systems absorb water directly from the soil.

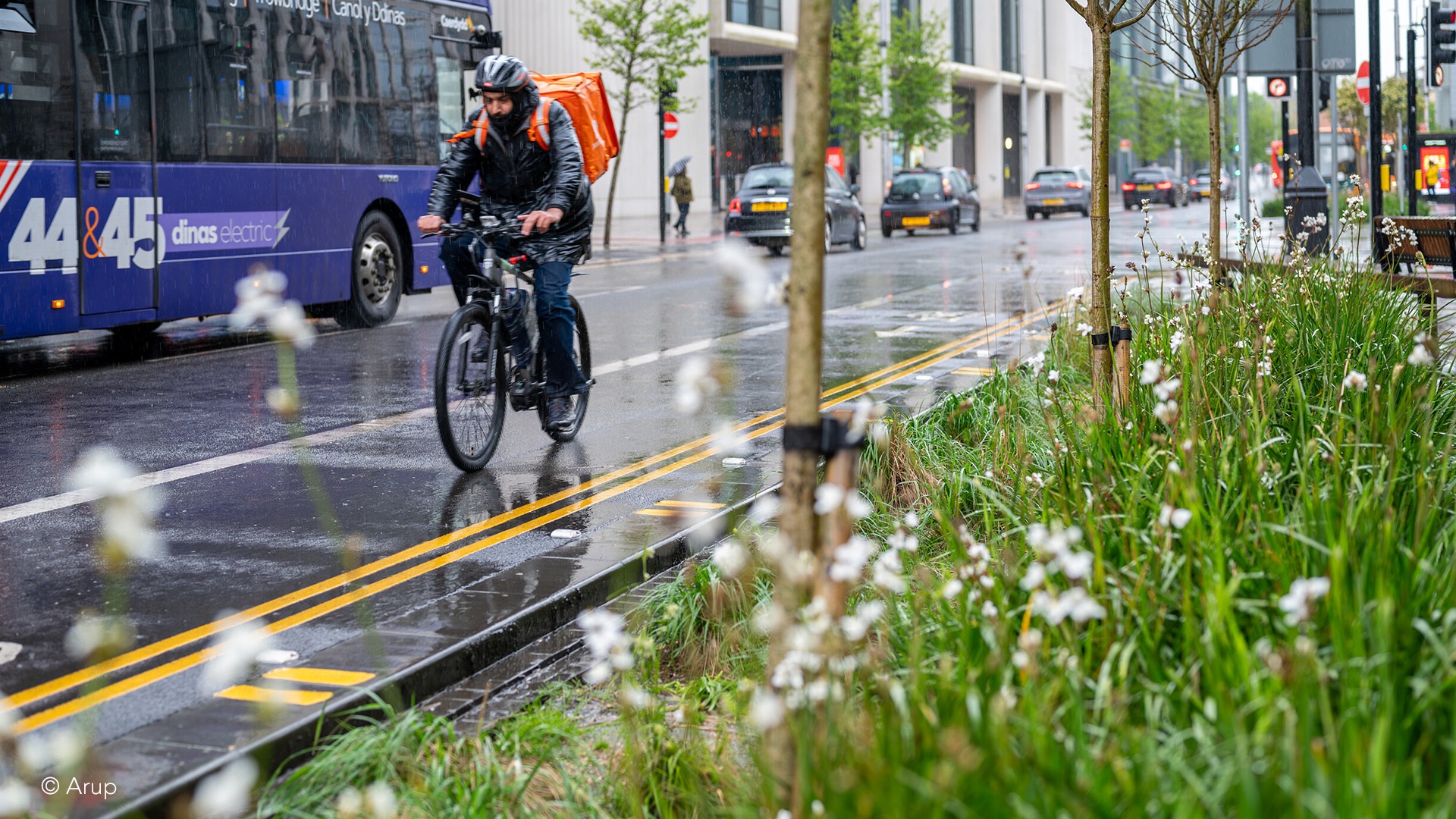

Raingardens complement tree pit systems by functioning as sophisticated natural collection and filtration networks. These systems temporarily store runoff from impervious surfaces, allowing water to infiltrate slowly rather than flowing directly into already overwhelmed storm drains. Through this process, raingardens filter pollutants via vegetation while reducing peak flow rates entering conventional drainage infrastructure, creating a buffer that protects downstream systems during extreme weather events.
The Multi-Benefit Advantage of Integrated Systems
What distinguishes nature-based SuDS from traditional approaches is their remarkable ability to deliver multiple environmental, social, and economic benefits through a single integrated system. Beyond their primary water management function, these systems enhance urban water quality through sophisticated natural filtration processes that remove pollutants and sediments from stormwater runoff.
The environmental benefits extend to significant reductions in urban heat island effects, creating measurably cooler areas that improve urban liveability during hot weather. These systems also provide crucial habitat for urban biodiversity while contributing to improved air quality through carbon sequestration and pollutant removal. The economic advantages are equally compelling, with studies consistently showing that properties near well-designed green infrastructure command higher values while contributing to enhanced community wellbeing.
Strategic Integration and Early Planning Excellence
The success of tree pit and raingarden systems depends on strategic integration from the earliest stages of project development. Early incorporation allows for seamless coordination with other infrastructure systems and optimised land use that maximises system efficiency. This approach also ensures better alignment with emerging policy requirements such as Biodiversity Net Gain and Schedule 3 compliance.
However, for existing sites that need improved flood resilience, nature-based SuDS solutions can also be easily retrofitted. Many urban areas already developed without sustainable drainage systems can benefit from strategic interventions that work with natural processes to manage stormwater more effectively. These solutions are particularly attractive because they often require minimal disruption to existing infrastructure and the flexibility of nature-based SuDS means they can be scaled to fit available space and budget constraints.
GreenBlue Urban’s methodology emphasises comprehensive site analysis combined with meaningful community engagement to ensure that solutions respond effectively to local conditions while building the public support essential for long-term success. This holistic approach extends below ground through advanced systems that facilitate seamless integration between urban trees and existing infrastructure networks, accommodating utilities, foundations, and transport systems while supporting optimal tree development and water management functions.
Proven Success Through Real-World Implementation
The effectiveness of integrated tree and SuDS solutions has been demonstrated through numerous successful projects across the UK, moving from theoretical potential to evidence-based validation. The Cool Towns project, which operated from 2014 to 2020 as a partnership between 13 European countries, demonstrated the transformative potential of green and blue infrastructure in combating climate change effects within urban environments, particularly focusing on improving cities’ capacity to adapt to heavy rainfall through innovative retrofitting in space-constrained public areas.
In Margate, persistent flooding issues prompted local authorities to successfully implement nature-based solutions using Cool Towns funding and GreenBlue Urban’s ArborFlow suite of products. This integrated approach effectively addressed immediate flood management needs while establishing healthy trees that will provide increasing benefits for future generations. Similarly, Southend‘s town centre enhancement project demonstrates how SuDS features incorporating soil cells can significantly reduce peak flows into drainage networks while measurably cooling the air through evapotranspiration, simultaneously addressing flooding risk and urban heat stress.
Technical Excellence and Maintenance Efficiency
The long-term success of urban tree and raingarden systems depends on several critical technical considerations that ensure both optimal performance and system longevity. Engineered soil specifications must achieve the delicate balance between supporting healthy root development and maintaining the structural integrity necessary for urban environments. Thoughtful species selection ensures compatibility with site-specific conditions, accounting for water tolerance, root architecture, and mature canopy dimensions to prevent infrastructure conflicts while promoting system longevity.
Unlike conventional grey infrastructure that requires intensive ongoing maintenance, well-designed urban tree systems and raingardens demonstrate remarkable efficiency through advanced design principles that prioritise both functionality and sustainability. Stormwater components emphasise simple water transfer mechanisms that minimise blockage potential, while specialised soil compositions provide effective drainage and filtration with minimal intervention requirements. Modern designs resist debris accumulation at system inlets, maintaining functionality even when maintenance schedules are delayed.
Looking Forward: Flood & Coast 2025
The integration of nature-based solutions for flood and coastal risk management becomes increasingly critical as extreme weather events continue to intensify. GreenBlue Urban is proudly supporting the Flood & Coast 2025 event, which aims to engage neighbouring sectors in delivering government growth ambitions through collaborative approaches, sustainable solutions, and robust policy support.
Shane Frost, who leads GreenBlue Urban’s expert technical team, will present on maximising flood resilience through combined tree and SuDS solutions, using evidence-based insights to demonstrate how early integration of trees and sustainable drainage systems can significantly enhance urban flood management. The presentation will feature case studies and quantifiable data from implemented projects, illustrating how innovative blue-green infrastructure approaches deliver superior flood resilience while creating multiple benefits for urban environments.
This presentation directly addresses the Flood & Coast event’s focus on climate resilience by providing technical evidence for solutions that deliver enhanced flood management capability within existing development frameworks. The integrated approach demonstrates how combining nature-based solutions with engineered systems creates more effective and resilient infrastructure that adapts to changing climate conditions while providing immediate community benefits.
The Path Forward
The evidence overwhelmingly supports integrating tree pits and raingardens into comprehensive SuDS approaches as flood management solutions that create multiple co-benefits enhancing urban quality of life. These nature-based systems enable local authorities to create resilient urban environments that effectively manage stormwater while enhancing biodiversity, improving air quality, and fostering more liveable communities.
This represents a cost-effective climate adaptation strategy that delivers significant environmental, social, and economic returns, positioning nature-based SuDS as an indispensable component of future urban planning and development. As we face an increasingly uncertain climate future, these integrated solutions provide the adaptive capacity and resilience our cities need to thrive while protecting communities from severe weather events that will only become more frequent and intense in the years ahead.
