StormForm

Short description

Multifunctional SuDS tree surround

Details

Category:

Description

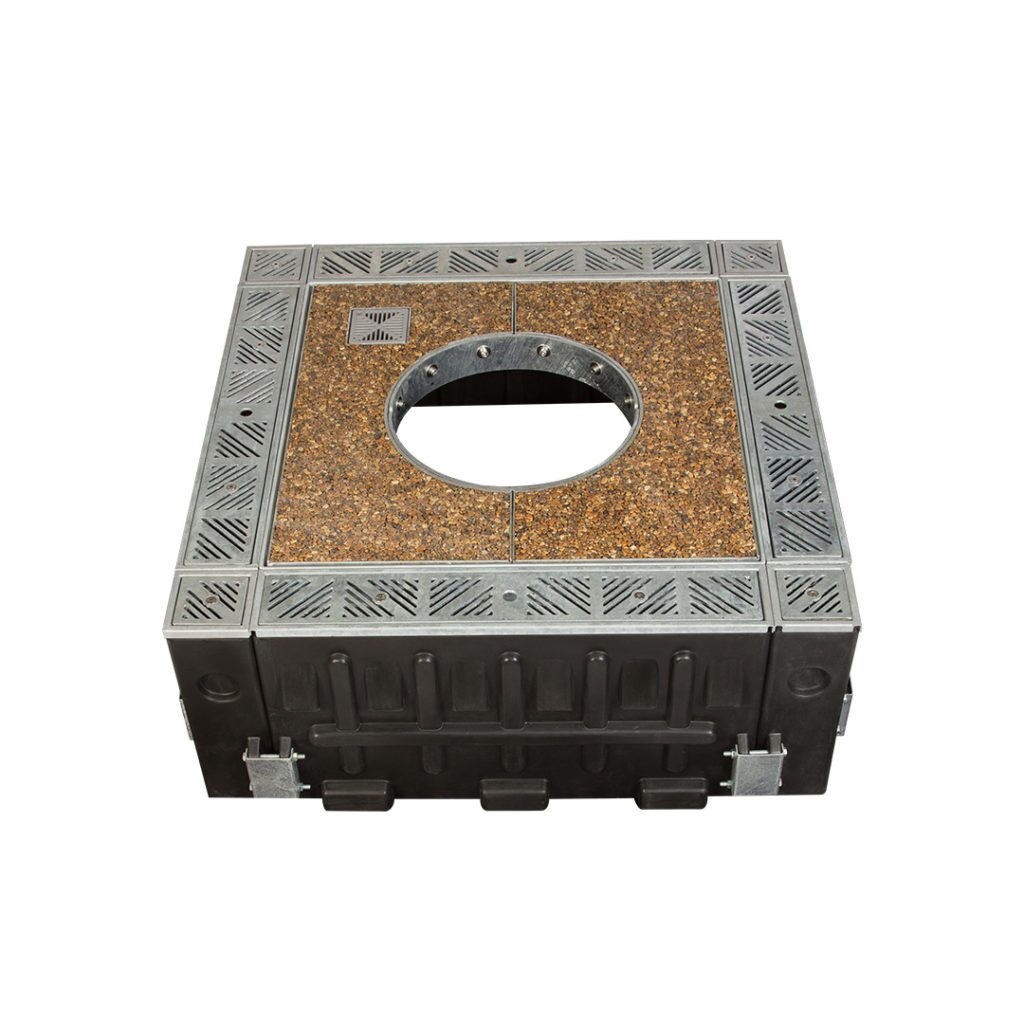

GreenBlue Urban’s compact SuDS tree pit surround, StormFormTM – part of the ArborFlow family – has been developed as an effective means of managing surface water run-off through tree pits. Ideal for use in urban areas where space is at a premium, StormFormTM handles extreme rainfall events in urban areas with ease.

With super-fast flow through rates and large storage capacity, StormFormTM is perfect for attenuating peak flows during the most extreme storm events and directing the water right into the tree pit where pollution and further capacity storage is available.

StormFormTM is an ingenious multi-functional system combining stormwater capture and storage, silt/debris capture, root control, primary irrigation and tree grille all on one easy to assemble, robust unit.

  • Manufactured from recycled materials
  • Galvanised steel gulley and grating
  • Integral easy access silt/debris trap
  • Range of integral tree grilles available
  • Internal ribs for root control
  • Integral primary tree irrigation system
  • Integral water level indicator
  • Stainless steel fixings
  • Compact, multi-functional unit easy to specify & install
  • Attenuates peak water flow rates in extreme rain events
  • Non-blocking / easy access inlet grate
  • Directs roots downwards
  • Prevents soil compaction around rootball
  • Supports tree grille securely
Product Codes Description Nominal size Water storage Flow rate
SF100A StormFormTM 100 Series SUDs System 1000mm x 1000mm 202 ltrs 10,000 ltrs/hr
SF200A StormFormTM 200 Series SUDs System 1750mm x 1000mm 293 ltrs 15,000 ltrs/hr
SF300A StormFormTM 300 Series SUDs System 1750mm x 1750mm 384 ltrs 19,000 ltrs/hr



Materials Accessories Bespoke options Maintenance
  • Trough: Recycled HDPE
  • Gulley/Grating: Galvanised Steel
  • Tree Grille: Galvanised Steel and Precast Arboresin
  • Fixings: Stainless Steel
  • Spare joining brackets & fixings pack
  • Corner section c/w all components
  • Side section c/w all components
  • Mastic
Gulley gratings can be designed and manufactured to order to match existing aesthetics / architectural designs
Gulley gratings can be manufactured in different metals, e.g. bronze, stainless steel; or powder coated in any colour
Larger configurations can be created from individual components, or installed in linear applications
6 monthly inspection – cleaning out debris and silt as required
