ReLuminate

Short description

Standalone Off-Grid Streetlight

Details

Category:

Description

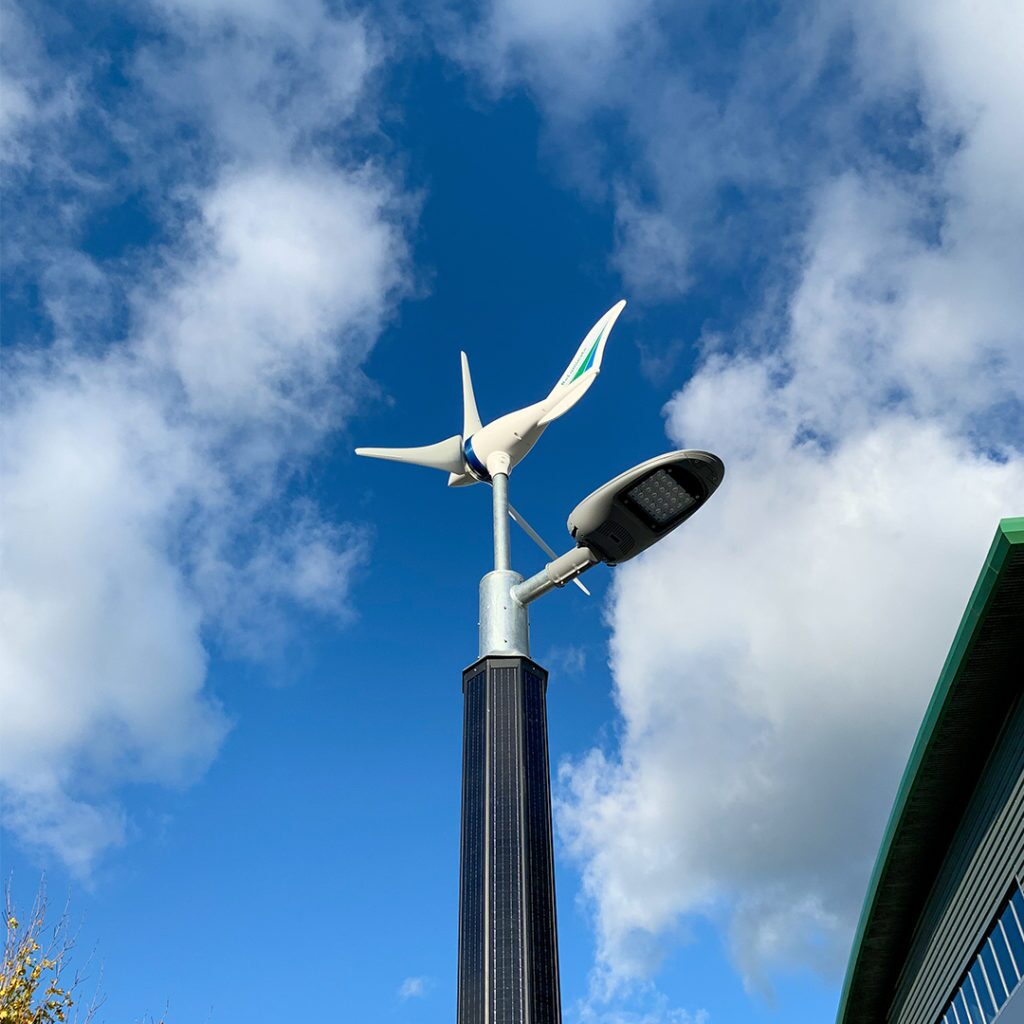

GreenBlue Urban are delighted to introduce the Standalone Off-Grid Streetlight. Combining solar and wind power to provide the most effective Off-Grid light system on the market, users can be confident in 100% energy availability during dark hours, all year round. This highly engineered product is solid and durable enough for the most demanding circumstances, both the structural pole and all the electronic components and technology throughout.

As completely Off-Grid, this provide a true net-zero carbon solution, not only eliminating any use of grid energy but also eliminating the expense and inconvenience of power infrastructure installations. With low cost to purchase and install, and zero maintenance costs, going Off-Grid means it will quickly pay for itself.

  • Vertically oriented and 360O deployed Solar PV Panels
  • 300w peak output wind turbine
  • Highly engineered steel and rotormoulded components
  • Efficient Li-Ion battery technology
  • Highly functional programming controller system
  • IK10 rated vandal-resistant Solar PV Panel and luminaire housing
  • 183Lumen PMMA polarised LED optics
  • 100% Off-Grid – zero carbon – zero noise – zero emissions
  • Proven 100% energy availability during dark hours all year round, without requiring movement sensors to save energy
  • Optimum radiation harvesting from Solar PV Panel design
  • Provides sufficient lighting for P3-P1 lighting classes defined by the 1995 issue of CIE115
  • Cost and time savings due to no power infrastructure requirements
  • Easy installation with the option of a relocatable base
  • Ecosystem sensitive / wildlife friendly LED colour adjustment
  • IOT connectivity option available
  • Maintenance-free
Product Codes Description
OGSLSA OffGrid Streetlight Standard
OGSLRA OffGrid Streetlight Relocatable
OGSLDCA OffGrid Streetlight Data Connectivity



Solar PV Panels Wind Turbine Luminaire Battery Programmable controller
2.6W
125x125mm
Relative efficiency at low light 97.3%
Si Polycrystalline, Producing 95.4W
0.4% annual degradation
Up to 300w PH peak output
3mtr/sec cut-in speed
ProVision ID 12v
16W 183 lumens per watt (Total 3000 lumen)
PMMA polarised optic
30Ah
192kWh usable energy
95% Round Trip Efficiency
Li-ion technology
1% annual degradation
3 day power back up
MPPT
99% efficiency
Programmable timing function
Stepped control
Auto turbine cut-off
Battery safety cut-off

Datasheets

green blue

Installation Guides

It appears that we have not uploaded any installation guides for this product yet. Please contact our customer services team.
