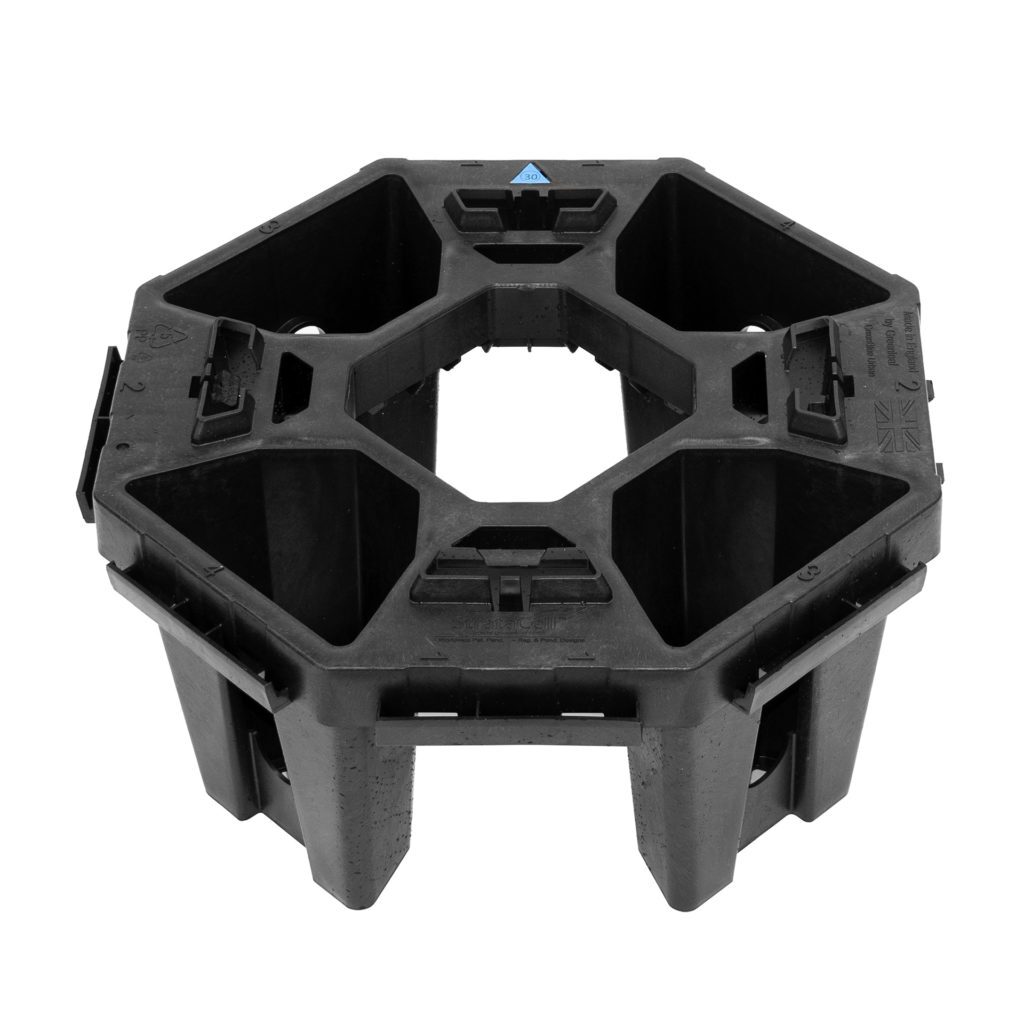

StrataCell

Short description

StrataCell structural soil cell was built upon successful trials aimed at reducing installation and transport costs and improving the module’s structural capacity.

Details

Category:

Description

Built to advanced engineering specifications to support greater vertical loads, StrataCell brings tree-root systems closer to pavement surfaces. Engineers have calculated that with only 300mm of granular pavement depth, a StrataCell matrix can support maximum pedestrian and sidewalk traffic loads.

With vertical and lateral forces also considered in the engineering make-up of tree pits, StrataCell’s well-designed matrix units lock together well, forming a monolithic framework with excellent modular strength.

Highly secure connectors allow StrataCells connected fast and simply. Its open skeletal structure provides an enormous growth zone for delicate root systems and for storm water harvesting.

Providing an excess of 94% soil by volume, StrataCell tree pits are distinctly more advantageous, providing optimum conditions for trees to live and flourish.

Generous specifications permit common conduits, service pipes and aeration mechanisms to be incorporated into the structure’s design.

  • Single component system
  • 94% soil by volume
  • Tool-less click together assembly
  • Industry leading load bearing capacity
  • Inter-stacking design for storage and transport efficiency
  • Designed to support enormous vertical as well as lateral loads
  • Excellent modular strength
  • Integrated matrix means modules are simple and fast to click together
  • In excess of 94% of total soil volume is available for tree-root growth
  • Generously designed apertures permit common conduits, service pipes and aeration systems
  • Significant volume reduction for freight and lower transport costs
  • Made from 100% post-industrial waste material
Code Length Width Height ULC*
GLSCM30A 30 Series 500mm 500mm 250mm 260 kPa
GLSCM60A 60 Series 500mm 500mm 250mm 550 kPa
Material 100% recycled HDPE
Manufacture location Injection moulded in UK

*subject to paving build up / layerworks depths, materials and construction methods

Datasheets

Installation Guides

It appears that we have not uploaded any installation guides for this product yet. Please contact our customer services team.
