DTS Yare

Short description

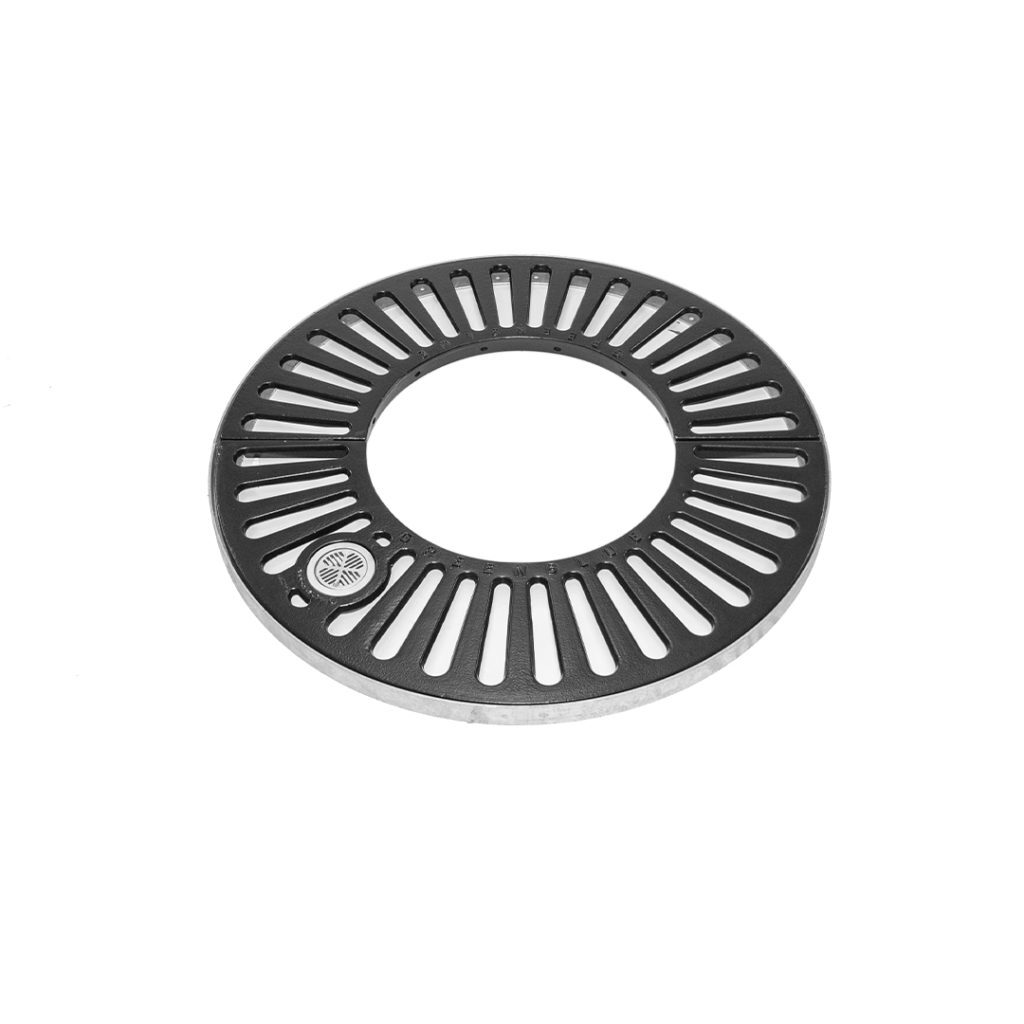

The Yare tree grille is a premium round ductile iron tree surround.

Details

SKU: YARE Category:

Description

Designing tree grilles is something GreenBlue Urban have been doing for over 2 decades. Beautiful timeless patterns have been created which add quality and flair to the urban environment. The fundamental critical purpose of tree grilles is to prevent soil compaction around the rootball. We have developed highly engineered design principles and finishing processes to ensure the durability of the structure and the coatings is robust enough to perform under harsh urban environments. The Yare tree grille is a premium round ductile iron tree surround.

Heavy duty galvanised support frame
Power coated cast ductile iron segments
Integrated irrigation system
Anti-theft lugs
Stainless steel fixings
Fully compatible / integrates with GBU below ground systems

Prevents compaction of soil
Enables gaseous exchange and water to freely access rooting area
Can be disassembled if needed for major tree maintenance
Design and built to be strong enough for vehicular overrun

Product Codes:

 Size Round Diameter  1000mm  1200mm
 Internal Aperture Diameter  500mm  600mm
 Product Code  YARE10A  YARE12A



Includes:

– Heavy duty galvanised support frame
– Powder coated grille segments
– Cast aluminium RootRain irrigation inlet
– Perforated pipe RootRain irrigation system
– Stainless steel fixings



Vehicle Overrun:

Maximum 1.5 tonne SMWL (Slow Moving Wheel Load)



Annual Maintenance:

Clean irrigation and aeration inlet filter brushes
Assess physical / cosmetic damage, spray protect exposed metal
Remove grille if central aperture threatens to restrict tree growth



Bespoke Options:

Full design and development service available
Heel safe / DDA requirements
HGV loading requirements
Slip resistance requirement
Full range of RAL colours available to order
