ArborGuy AnchorPlate

Short description

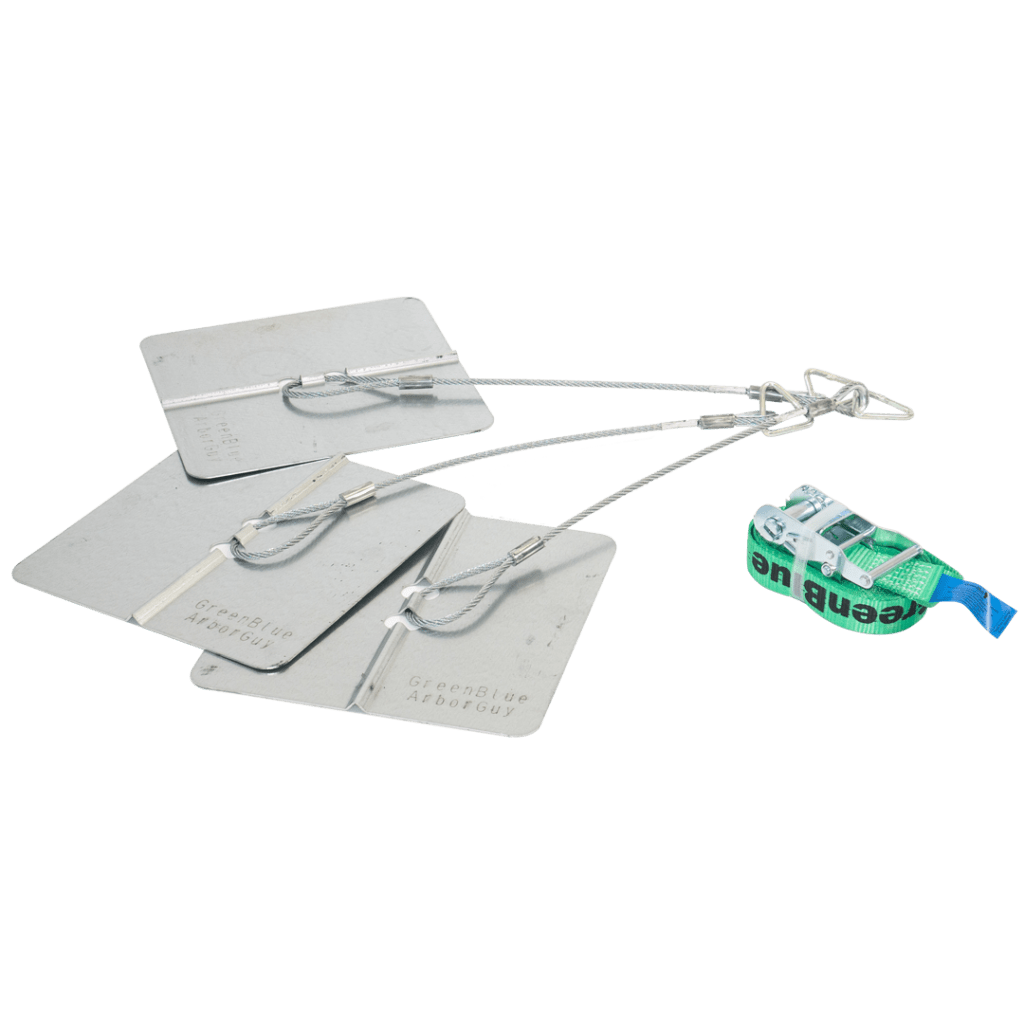

The new ArborGuy AnchorPlate is designed as the lowest profile “deadman” anchor system available.

Details

Category:

Description

This method of securing trees has many advantages over staking and is suitable for large root-balled trees.  The new ArborGuy AnchorPlate is designed as the lowest profile ‘deadman’ anchor system available and provides a complete package – no further parts required.

  • Three high strength steel anchor wires
  • Single piece, wide webbing anchor strap for fast installation
  • Integral ratchet tensioner
  • Fully complements GreenBlue Urban packages
  • Out of sight anchoring
  • Wide webbing strap will not cut into the rootball, no extra protection mat required
  • Low profile anchor eliminates further excavation
  • Complete system, no further components or tools required
  • No drive-in anchor makes it safer for working in the vicinity of below ground services



Code RootSpace Depth Max Tree Girth (Circ.) Wire Length
SASAP04A 400mm <45cm* 500mm
SASAP06A 600mm <45cm* 700mm
SASAP08A 800mm <45cm* 900mm
SASAP10A 1000mm <45cm* 1100mm
SASAP12A 1200mm <45cm* 1300mm

*For trees larger than 40cm girth, use two SASAP kits per tree, six anchor wires positioned equally around the rootball, the two straps installed in a ‘Star of David’ pattern.

Note, consideration should be given to tree crown shape, size and density, location, and prevailing wind speed. Large, dense and/or tall crowns in exposed or roof top situations with high wind speeds may require extra stability



WIRE:

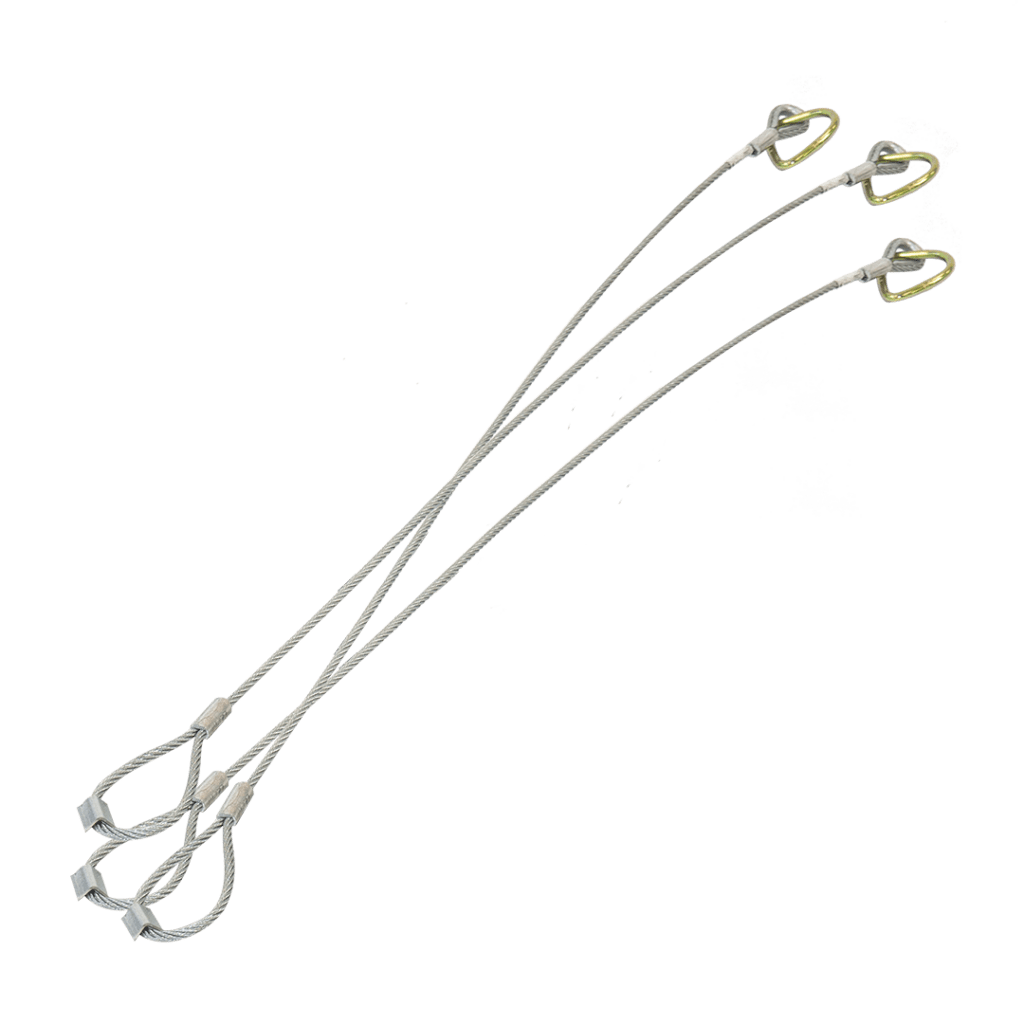

  • Dimensions: 6mm diameter 7×7 strand galvanised rope
  • Assembly safe working load 500kg
  • Manufactured to BSEN12385-4, BSEN13411-1,2,3, BSEN13414-1

STRAP:

  • Dimensions: 35mm wide, 8mtrs long
  • Manufactured to EN12195-2

AnchorPlates:

  • Galvanised mild steel



Maintenance

  • Re-tension strap 3 weeks after installation and again after 3 months
