ArborGuy Overhead Guying System

Short description

Overhead tree guying system for temporary or non-rootballed trees.

Details

Category:

Description

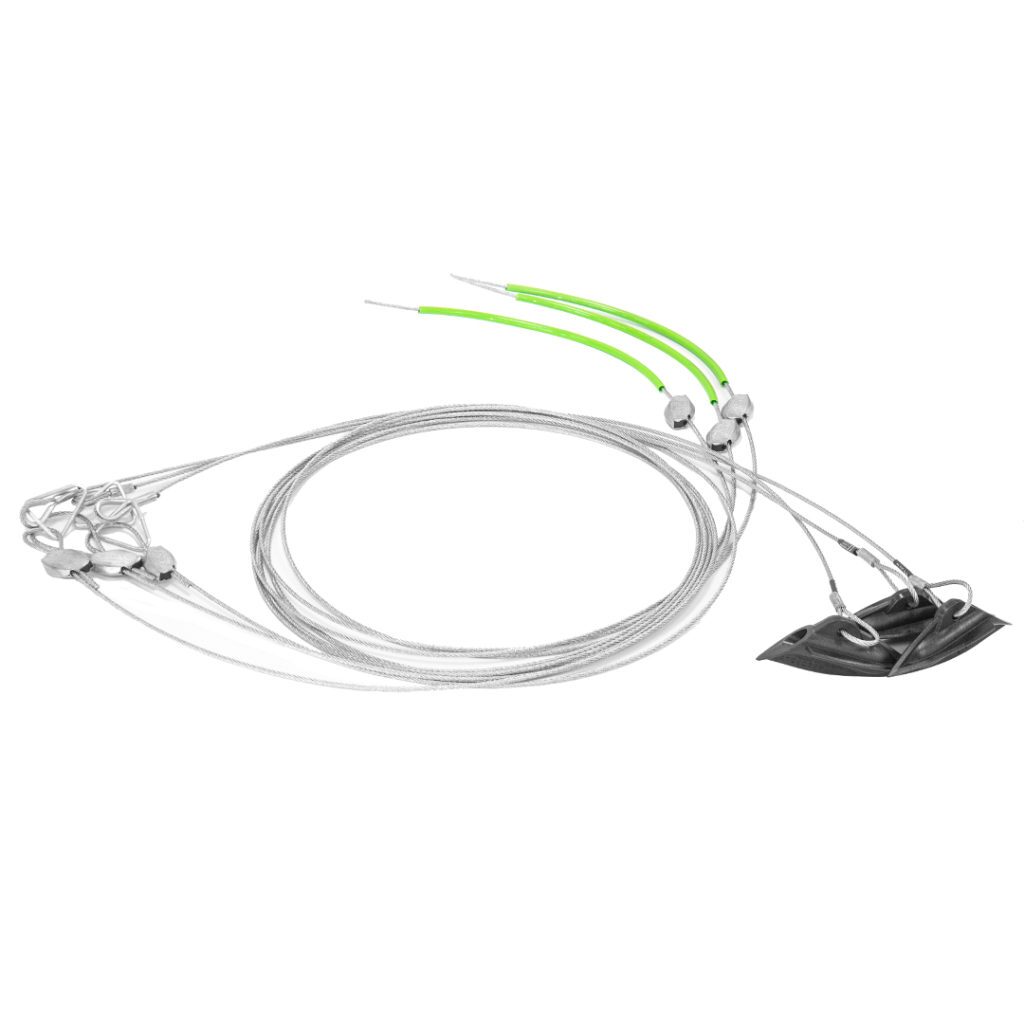

Some types of trees, Palm Trees or Christmas Trees for example, are not suitable for below ground guying due to absence of sufficient rootball size or they are of a temporary nature. The GreenBlue Over Head Guying System is perfect for these types of applications. The GreenBlue Arborguy Drive-In anchor is connected to an adjustable tamper-proof guy rope which secures the tree with bark protective sleeving.

  • Heavy duty galvanised steel guy wires
  • Large Arborguy Drive-In anchors
  • Durable sleeving for bark protection
  • Pre-assembled for fast installation
  • Tamper-proof construction
  • Post-installation adjustability
  • Disassemble/reassemble for temporary/seasonal trees
Product Code Max tree height Drive-in anchor section Overhead guy wire Number of guys
GBUOHG06A 6mtr
Medium composite anchor
4mm x 1mtr wire
4mm x 4mtrs 3
GBUOHG15A 15mtr
Large composite anchor
6mm x 1mtr wire
4mm x 12mtrs 4
  • Wire manufactured to: BSEN12385-4, BSEN13411-1,2,3, BSEN13414-1

Seasonal adjustment and disassembly requires the wire grip release key, available on request

Maintenance

  • Visual checks for damage / interference
  • Annual checks for seasonal adjustment to allow for tree growth
