RootDirector Riser

Root control building block system.

Fast, light, strong. The RD Riser from GreenBlue Urban. Root control building block system for deeper surface and subbase layerworks designs eliminating the need for concrete. Providing high vertical and lateral support, the interlocking single component is modular, designed to be built up to multiple configurations and any depth. A reinforced option is available for maximum lateral and vertical loading requirements. Can be used with or without a GBU RootDirector on the top.

*Patent Pending

Benefits

Instant structure – no waiting for concrete curing
No concrete required
Low carbon – UK manufacture from 100% recycled and 100% recyclable material
Low cost and safe, single-person installation – no equipment necessary
Multiple configurations possible

Features

Single interlocking component
Root deflecting ribs
Locks into RootSpace tree opening
High strength, minimum material, honeycomb structural design

Technical Specifications

Material	100% recycled polypropylene
Manufacture location	Injection moulded in UK

Product Code	Description
RDR100	RootDirector Riser Modular and Structural Root Director System 500x100x100mm

RD Riser Configuration	Number of units per 100mm layer
1000x1000mm	8
1500x1500mm	12
2000x2000mm	16

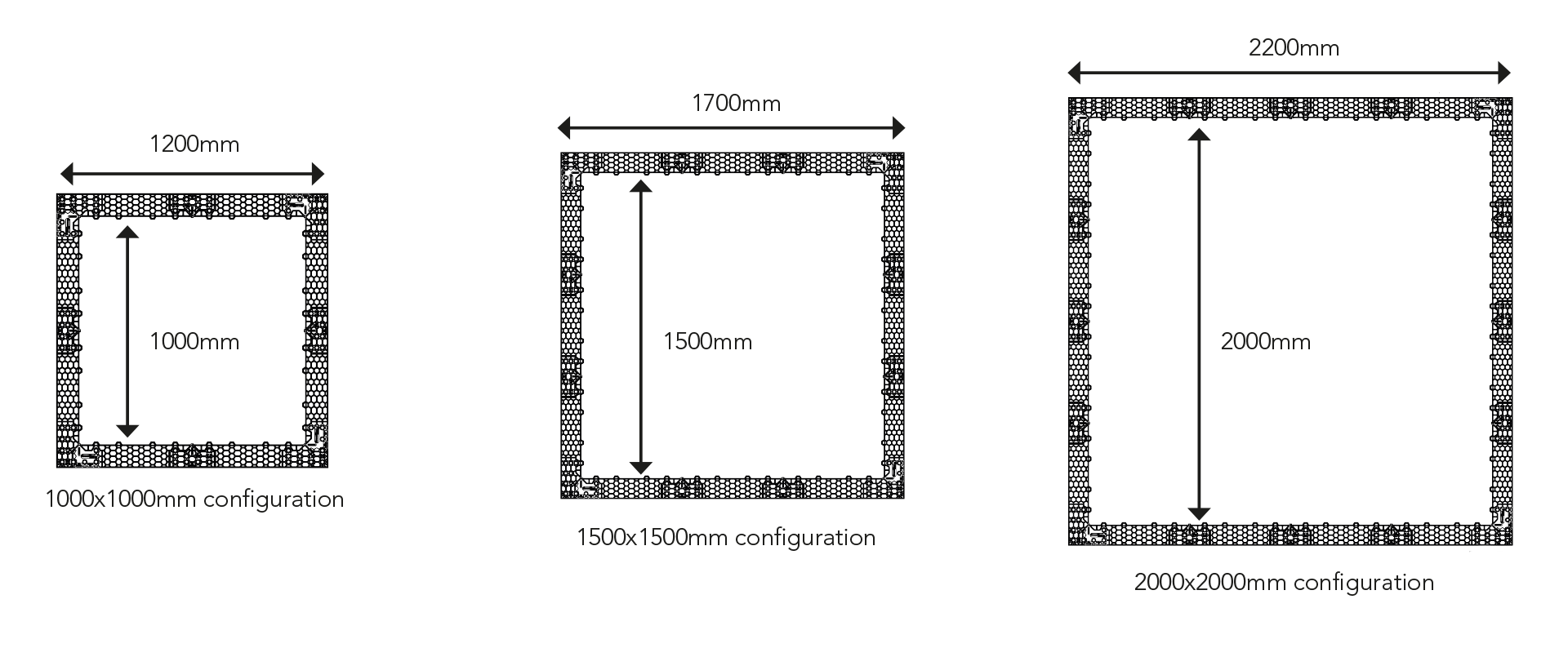

RD Riser Configuration	Minimum tree grille frame size	Suitable RootDirector
1000x1000mm	1200×1200	RD1000-RSA
1500x1500mm	1700×1700	RD1500-RSA
2000x2000mm	2200×2200	N/A
